Kondisi: Baru
Min Pemesanan: 1 Buah

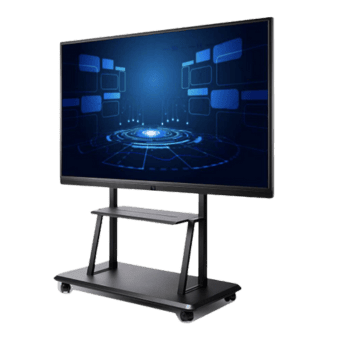

Interactive Flat Panel
Sangat cocok untuk Instansi sekolah menjadikan mengajar lebih moderen fun dan elegan serta mempermudah presentasi dan dapat juga di gunakan untuk perkantoran zoom meeting presentasi dan lain-lain.
Main Features:
- Excellent slim design with aluminum alloy edging.
- Ultra high 4K resolution and new original panel with TFT LED backlight.
- Sensitive 20 points IR touch.
- Built in professional Anti-Glare glass (optional).
- Built in wireless projection and reverse touch control, support mobile and PC.
- EShare wireless transmitter for wireless projection, plug and play (optional).
- Windows PC can support Webcast function, PC can install one Eshare software, then can wireless project screen to interactive board screen, and can reverse touch control.
- Dual OS: Android OS and Windows OS available.
- Built in professional OPS computer, can customize CPU, RAM and storage(optional).
- Built in professional whiteboard software, full 4K resolution user interface and GIF icons.
- Built in annotation function, can annotate on both Android and Windows OS, supportQR scanning to download to mobile phone.
- Whiteboard software support 2/3/4 split screen writing simultaneously.
- Magnetic touch pen can be absorbed on the board’s front frame.
- VC module: 12M/48M pixels camera and 13M pixels motion and audio tracking camera with 8 sound arrays system (optional).
- CE,ROHS, TELEC, PSE, FCC, HDMI and ENERGY STAR certified.
- ISO9001 and ISO14001 certified.
Specifications
Display
| Display Screen | 65/75/85/98/100 inch” LG brand |
| Panel back light | TFT-LED |
| Display Ratio | 16:9 |
| Color | 10bit (16.77Million) |
| Display Area | 1895.04*1065.96mm |
| Resolution | 3840*2160 (UHD) |
| Brightness | 500cd/m2 |
| Contrast | 4000:1 |
| Response Time | 5ms |
| View Angle | 178° left and right, up and down |
| Life time | Over 50,000hrs |
Performance
| OPS PC CPU | Windows Max: Intel quad Core i5 CPU, 3.2G Hz, 4G RAM/128G SSD (can customize) |
| Android CPU | ARM Cortex A53/1.5 GHz/2G RAM WITH 16G SD card |
| Memory | Kingston DDR 4G for Windows PC; |
| HDD | 128G SSD for Windows PC |
| Main Board | Industrial board |
| Graphic Card | Integrated Graphics Card, Support UHD 4K Resolution. |
| Network Card | 10/100/1000M adaptive card |
| WIFI | 802.11A/g/n(2.4/5GHZ) |
| Windows OS | Windows 7,8.1 and 10 trial version |
| Android OS | Android 5.0 and above |
Interface
| USB | USB*4 |
| COM | RS232 COM*1 |
| HDMI Input | HDMI*3 |
| AV Input | AV*1 |
| VGA Input | VGA*1 |
| MIC Audio Input | MIC Audio*1 |
| HDMI Output | HDMI*1 |
| VGA Output | VGA*1 |
| AV Output | AV*1 |
| Line Audio Output | Line*1 |
| Touch USB Port | Touch USB Port*2 |
| Network |
RJ45*2, WIFI*2 |
Touch
| Touch Type | Infra-red |
| Points | 10 points (can customize 20 points) |
| Response Time | Less than 5ms |
| Resolution | 32767 * 32767 |
| Position Accuracy | ±1.5mm |
| Communication | USB2.0 |
| Life Time | Over 60,000,000 touches |
Whiteboard Software
IR touch support touch by stylus or finger?Touch by finger?Touch by stylus?Touch by finger and stylus sync
Windows OPS Configuration (Optional)
Client can choose from the Pro, Max or Maxplus version for the OPS, we also can customize other configurations, pls check with sales separately. OPS configuration options Pro version: Intel I3 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD. Max version: Intel I5 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD. Maxplus version: Intel I7 CPU, 4th Generation, DDR 3 4G RAM, 128G SSD. Graphics card Intel® HD Graphics card integrated WIFI IEEE802.11an 2.4GHz Windows OS Windows 7, 8.1, 10 trial version
